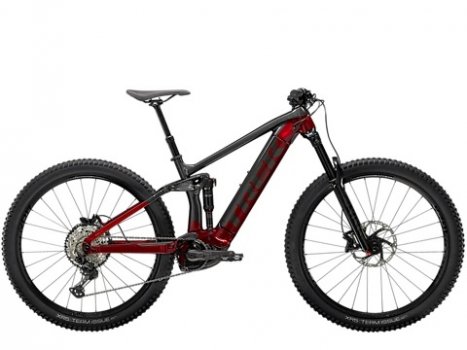

The Trek Rail 7 2024 Electric Bike (E-Bike) comes with Alpha Platinum Aluminum frame, 250W motor, Bosch PowerTube 625 battery, Bosch standard 4A (100-240V) Charger and 23.59 kg weight.
|
Brand |
TREK |
|
Model |
Rail 7 2024 |
|
Released date |
2024 |
|
Status |
Available |
|
Frameset |
|
|
Frame |
Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel |
|
Fork |
RockShox Yari RC, DebonAir spring, Motion Control RC damper, e-MTB optimized, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 160mm travel |
|
Shock |
RockShox Deluxe Select+, 230x57.5mm |
|
Wheels |
|
|
Wheel front |
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle |
|
Wheel rear |
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
|
Hub front |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
|
Hub rear |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
|
Skewer rear |
Bontrager Switch thru axle, removable lever |
|
Tire |
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.60'' |
|
Rim strip |
Bontrager TLR |
|
Drivetrain |
|
|
Shifter |
Shimano SLX M7100, 12 speed |
|
Rear derailleur |
Shimano XT M8100, long cage, 51T max cog |
|
Crank arm |
Ethirteen Espec Plus, 34T, 165mm length |
|
Cassette |
Shimano SLX M7100, 10-51, 12 speed |
|
Chain |
Shimano SLX M7100, 12 speed |
|
Pedal |
VP-536 nylon platform |
|
Components |
|
|
Saddle |
Bontrager Arvada, steel rails, 138mm width |
|
Seatpost (Sizes) |
|
|
Size: S |
TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length |
|
Size: M, L, XL |
TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
|
Handlebar |
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width |
|
Grips |
Bontrager XR Trail Comp, nylon lock-on |
|
Stem |
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length |
|
Brake |
Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper |
|
Brake rotor |
Shimano RT76, 6-bolt, 203mm |
|
Accessories |
|
|
Battery |
Bosch PowerTube 625 |
|
Charger |
Bosch standard 4A (100-240V) charger |
|
Controller |
Bosch Purion |
|
Motor |
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist |
|
Weight |
|
|
Weight
|
M - 23.59 kg / 52.00 lbs (with tubes) |
|
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
|
