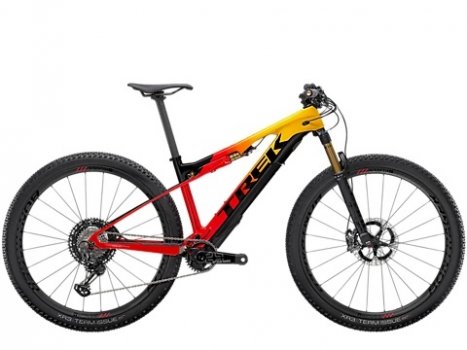

trek e-caliber 9.9 xtr 2024

Brand

TREK

Model

E-Caliber 9.9 XTR 2024

Released date

2024

Status

Available

Frameset

Frame

OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel

Fork

Fox Factory 34 Step-Cast, Float EVOL air spring, FIT4 2-position damper, dual remote lockout, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 120mm travel

Shock

Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235x32.5mm

Suspension lever

Bontrager Drop Lock remote

Wheels

Wheel front

Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, centerlock, Boost110, 15mm thru axle

Wheel rear

Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, DT Swiss 54T engagement, centerlock, SRAM XD driver, Boost148, 12mm thru axle

Tire

Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40''

Tire part

Bontrager TLR valve, 50mm

Drivetrain

Shifter

Shimano XTR M9100, 12 speed

Rear derailleur

Shimano XTR M9100, Shadow Plus, long cage, 51T max cog

Crank arm (Sizes)

Size: S , M , L

Ethirteen Espec Race Carbon, 32T, 170mm length

Size: XL

Ethirteen Espec Race Carbon, 32T, 175mm length

Chain

Shimano XTR M9100, 12 speed

Components

Saddle

Bontrager P3 Verse Pro, carbon rails, 145mm width

Seatpost (Sizes)

Size: S

Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 330mm length

Size: M , L , XL

Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 400mm length

Handlebar

Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width

Grips

ESI Chunky

Stem (Sizes)

Size: S , M

Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length

Size: L , XL

Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length

Headset

Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom

Brake

Shimano XTR M9120 4-piston hydraulic disc

Brake rotor (Sizes)

Size: S , M , L , XL

Shimano MT900, 203mm, centerlock

Size: S , M , L , XL

Shimano EM910, 180mm, centerlock

Accessories

E-bike system (Sizes)

Size: S , M , L , XL

Fazua Evation 1.0, 250Wh

Size: S , M , L , XL

Fazua Evation Drive Pack, 20mph max assist

Size: S , M , L , XL

Fazua Evation charger, 90-120V

Controller

Fazua Remote bX

Weight

Weight

M - 15.04 kg / 33.15 lbs (with TLR sealant, no tubes)

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
