Brand |
Kawasaki |
|
Model |

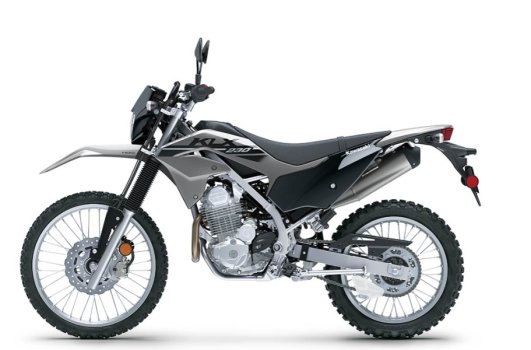

KLX230 2024 |
|
Release date |
2023 |
|
Status |
Coming soon |
|
POWER |
|
|
Engine |
4-stroke single, SOHC, air-cooled |
|
Displacement |
233cc |
|
Bore x Stroke |
67.0 x 66.0mm |
|
Compression Ratio |
9.4:1 |
|
Fuel System |
DFI with 32mm Keihin throttle body |
|
Ignition |
TCBI Electronic Advance |
|
Transmission |
6-speed, return shift with wet multi-disc manual clutch |
|
Final Drive |
Chain |
|
Electronic Rider Aids |
- |
|
PERFORMANCE |
|
|
Front Suspension / Wheel Travel |
37mm telescopic fork/8.7 in |
|
Rear Suspension / Wheel Travel |
Uni-Trak® linkage system and single shock with adjustable spring preload/8.8 in |
|
Front Tire |
2.75 x 21 |
|
Rear Tire |
4.10 x 18 |
|
Front Brakes |
Single 240mm petal disc with a dual-piston caliper |
|
Rear Brakes |
Single 220mm petal disc with single-piston caliper |
|
DETAILS |
|
|
Frame Type |
High-tensile steel, box-section perimeter |
|
Rake/Trail |
27.5°/4.6 in |
|
Overall Length |
82.9 in. |
|
Overall Width |
32.9 in. |
|
Overall Height |
45.9 in. |
|
Ground Clearance |
10.4 in. |
|
Seat Height |
34.8 in. |
|
Curb Weight |
291.1 lb. / 293.3 lb. CA model |
|
Fuel Capacity |
2.0 gal. |
|
Wheelbase |
54.3 in. |
|
Color Choices |
Lime Green |
|
Warranty |
12 Months |
|
Kawasaki Protection Plus™ (optional) |
12, 24, or 36 months |
