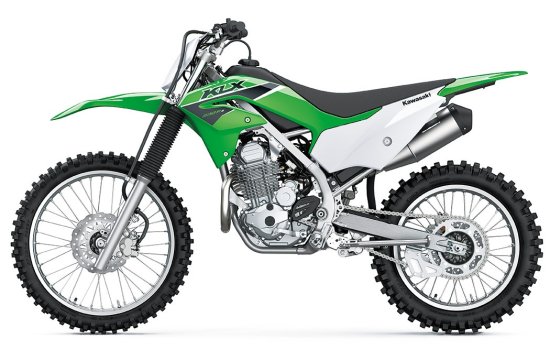

kawasaki klx230r s 2024

Brand

Kawasaki

Model

KLX230R S 2024

Status

Release Date

2024

Type

Off Road Bike

Made In

Japan

Colors

Lime Green

Full Specs and Features

PERFORMANCE

Frame

Perimeter, high-tensile steel

Front Suspension

ø37 mm telescopic fork

Rear Suspension

New Uni Trak with adjustable spring preload

Front Wheel Travel

230 mm

Rear Wheel Travel

233 mm

Rake

25.7°

Trail

108 mm

Steering Angle (L/R)

45° / 45°

Front Tyre

80/100-21 51M

Rear Tyre

100/100-18 59M

Front Brake/s

ø240 mm petal disc

Front Caliper/s

Dual-piston

Rear Brake

ø220 mm petal disc

Rear Caliper

Single-piston

POWER

Maximum Power

14.6 kW {20 PS} / 8,000 rpm

Maximum Power with Ram Air

-

Maximum Torque

20.6 Nm {2.1 kgfm} / 6,000 rpm

Engine

4-stroke Single

Displacement

233 cc

Bore x Stroke

67.0 x 66.0 mm

Compression Ratio

9.4:1

Valve System

SOHC, 2 valves

Fuel System

Fuel injection: ø32 mm x 1

Ignition

Digital

Starting

Electric

Cooling

Air-cooled

Lubrication

Forced lubrication, wet sump

Transmission

6-speed, return

Primary Reduction Ratio

2.871 (89/31)

Gear Ratio: 1st

3.000 (39/13)

Gear Ratio: 2nd

2.067 (31/15)

Gear Ratio: 3rd

1.556 (28/18)

Gear Ratio: 4th

1.261 (29/23)

Gear Ratio: 5th

1.040 (26/25)

Gear Ratio: 6th

0.852 (23/27)

Final Reduction Ratio

3.538 (46/13)

Clutch

Wet multi-disc, manual

Final Drive

Chain

DETAILS

Dimensions (LxWxH)

2,035 x 840 x 1,175 mm

Overall Length

-

Overall Width

-

Overall Height

-

Wheelbase

1,350 mm

Road Clearance

275 mm

Seat Height

900 mm

Curb Mass

115 kg

Fuel Capacity

6.6 litres
