Brand |
Yamaha |
|
Model |

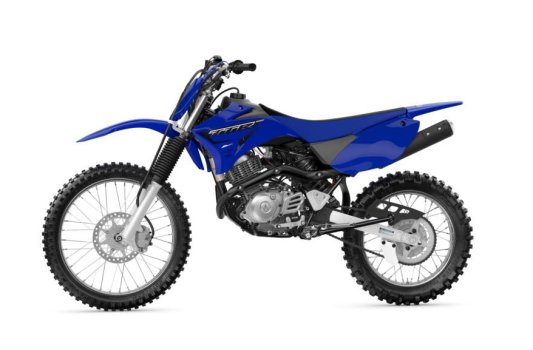

TT-R125 2024 |
|
Status |
Available |
|
Release Date |
2024 |
|
Type |
Off Road Bike |
|
Made In |
Japan |
|
Colors |
Icon Blue |
|
Full Specs and Features |
|
|
Engine |
|
|
engine type |
1-cylinder engine, 4-stroke, air-cooled, 2 valves, OHC |
|
displacement |
124ccm |
|
bore x stroke |
54,0 x 54,0 mm |
|
compression |
10,0 : 1 |
|
lubrication |
Nasssumpf |
|
coupling |
Oil bath, multiple discs |
|
ignition |
CDI |
|
launch system |
Electric and kick starters |
|
transmission |
sequential gearbox, 5-speed |
|
secondary drive |
Chain |
|
mixture preparation |
Mikuni VM20/1 |
|
Chassis |
|
|
frame type |
tubular bridge frame |
|
steering head angle |
28º30 |
|
trailing |
107 mm |
|
suspension in front |
Telescopic fork |
|
rear suspension |
swing arm, central spring strut |
|
Travel front |
180 mm |
|
rear travel |
168 mm |
|
front brake |
1 disc, Ø220 mm |
|
rear brake |
Drum, Ø110 mm |
|
tires in front |
70/100-19 42M |
|
rear tires |
90/100-16 52M |
|
Dimensions |
|
|
overall length |
1.885 mm |
|
overall width |
795 mm |
|
overall height |
1.085 mm |
|
seat height |
805 mm |
|
wheelbase |
1.270 mm |
|
ground clearance |
295 mm |
|
Weight, ready to drive, full tank |
90 kg |
|
tank capacity |
6.0 Liter |
|
oil tank capacity |
1.2 Liter |
